As customers transition from on-premises network servers to Egnyte, it is critical to optimize Civil 3D configuration for the cloud environment. Below are some best practices for configuring Civil 3D projects on the cloud. Egnyte has assembled these best practices after several discussions with successful engineering firms who use Egnyte for Civil 3D collaboration.
Civil 3D 2026 introduces enhanced data shortcut workflows, improved point cloud handling, and updated rendering capabilities. Each of these areas requires specific attention when operating against cloud storage to ensure optimal performance and reliability.
Network and Desktop App Configuration
| Category | Recommendation |
| Network Speed | Minimum 100 Mbps; 1 Gbps recommended for large XREF-heavy projects. |
| Desktop App Mode | Use ABC (Adaptive Block Cache) mode for Civil 3D-specific performance enhancements. |
| Smart Cache | Deploy Smart Cache device (ver 5.0+) for intelligent caching on on-prem locations for user working from office. |
| Max File Size | Keep individual DWG files under 1 GB; XREF files between 5 MB and 10 MB each. |
| XREF Count | Limit to 25 XREFs per host file for optimum performance. |
Optimize Civil 3D Startup Scripts to Reduce Civil 3D Loading Time
It is important to periodically review and clean up Civil 3D user profiles and plugins. It is possible that these profiles and plugins may reference outdated network paths that become invalid after moving away from legacy servers. Additionally, Civil 3D relies on support files, PC3 files, and custom templates, any delays in accessing these resources can impact performance.
Recommendations
Implement a startup script (for example, using Robocopy) that automatically copies essential resources, such as macros, templates, support files, and PC3 files from Egnyte to the local C: drive during application launch. This minimizes repeated cloud access during runtime and significantly reduces load times.
- Ensure the Autosave path is configured to the local C: drive, not an Egnyte path
- Enable Adaptive Block Cache (ABC) Desktop App mode to benefit from Civil 3D-specific caching enhancements available in Egnyte Desktop App
- Audit Civil 3D plugins and enable them incrementally, observing their impact on startup time before enabling all at once
- Start with a clean Imperial base image and layer only necessary plugins to maintain a lean environment
Consolidate Civil 3D Data Shortcuts Within a Single Folder on Egnyte
Civil 3D data shortcuts, typically small XML files, tend to accumulate across various subfolders throughout a project’s lifecycle. When users change the working directory or navigate through project folders, Civil 3D performs thousands of lookup and read operations on these shortcuts. If shortcut files are scattered throughout the project hierarchy, it can lead to performance degradation and application freeze, especially when operating in a cloud environment.
Recommendations
To mitigate this, centralize all data shortcut files within a dedicated folder inside the Civil 3D project structure. This consolidation reduces the number of file path resolutions and improves both lookup and file locking performance, optimizing round-trip times to the cloud and ensuring a smoother user experience.

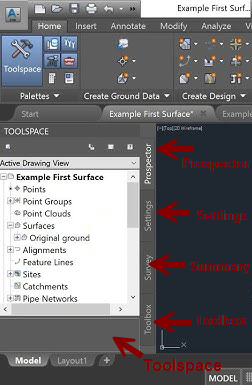

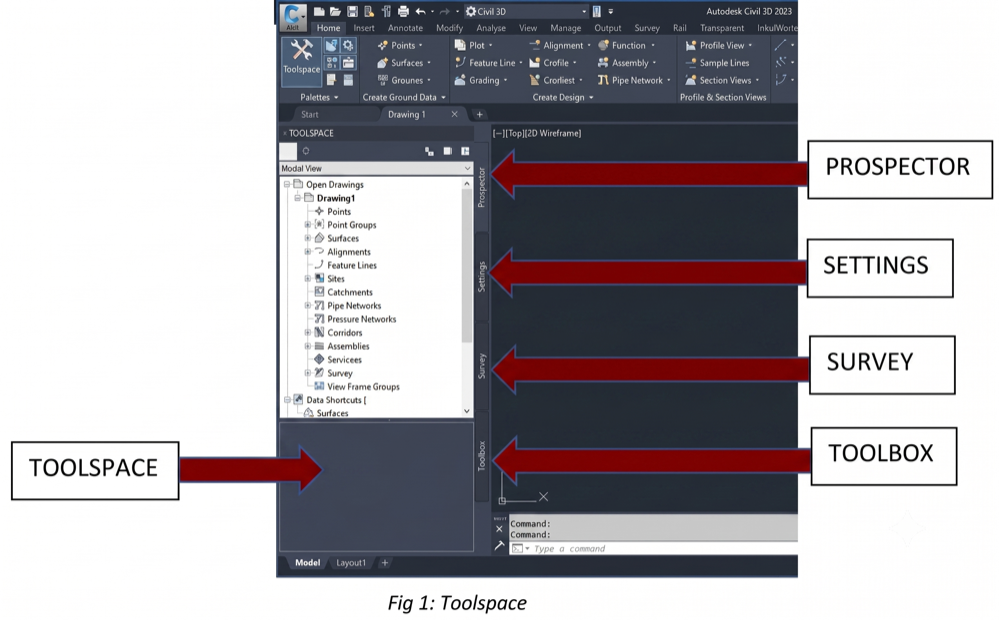

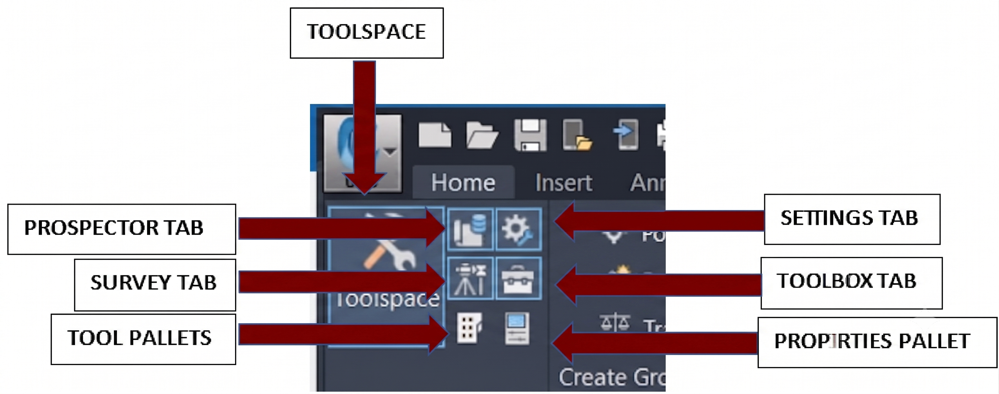

To view and manage the data shortcuts in Civil 3D, open the Prospector tab of Toolspace. Specifically, the Data Shortcuts node, under the Prospector tab, displays the path to the active project and the data shortcuts stored within it.
Users can also access the Data Shortcuts Editor from the Start menu to view and manage shortcuts in a separate window.

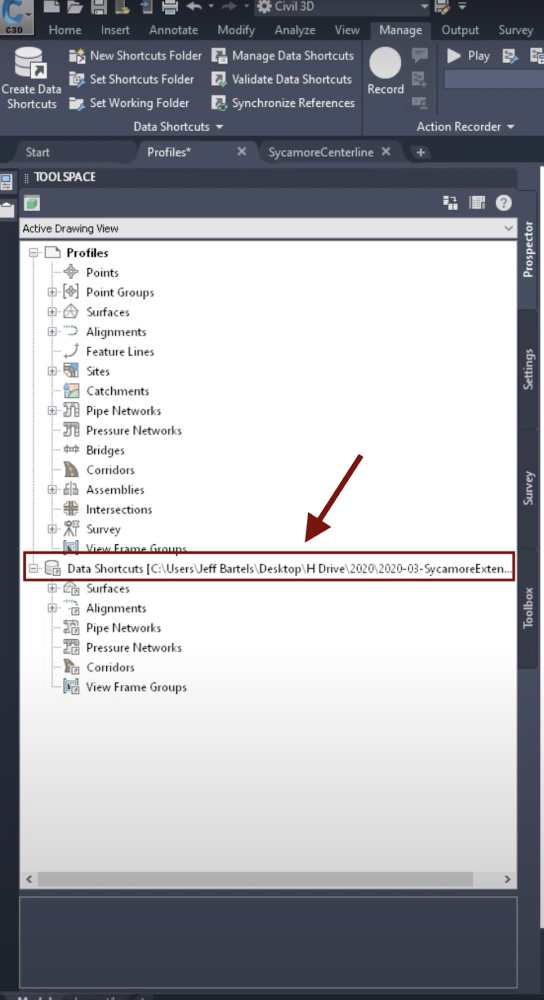

Once users have the Prospector tab open, they can view where the data shortcuts are located and view the file path shown adjacent to the Data Shortcuts option.
Configure File Locking to Prevent Concurrent Edit Conflicts
Civil 3D 2026 relies heavily on file references and cross-project data sharing. Without proper file locking, multiple users can open and modify the same DWG or data shortcut file simultaneously, resulting in data corruption or lost work. Egnyte Desktop App provides native file locking that integrates transparently with Civil 3D workflows.
Recommendations
Enable Egnyte file locking via the Desktop App and educate users on its behavior. Establish a project protocol for checking files in and out, particularly for surface files, alignments, and corridor models that are shared across disciplines.
- Train users to use Egnyte's lock/unlock workflow before opening shared Civil 3D source files.
- For large teams, consider partitioning the project into discipline-specific folders with explicit ownership to reduce lock contention.
Manage Point Cloud Data with Local Staging
Point cloud files (.RCP or .RCS) are among the largest files in a typical Civil 3D project, often reaching dozens of gigabytes. Streaming point cloud data directly from cloud storage during active Civil 3D sessions introduces latency and can cause application instability.
Recommendations
Stage point cloud files locally before attaching them in Civil 3D. Use Egnyte ABC (Adaptive Block Caching) with Egnyte Desktop app and Cache Warm frequently accessed point cloud datasets on local drives, reducing the need for on-demand downloads during active design sessions.
- Pre-download point cloud files to a local staging folder before beginning a Civil 3D session that requires point cloud work
- Use relative paths when attaching point cloud files to ensure portability across team members' machines
- Compress and tile point cloud data using Autodesk ReCap before storing on Egnyte to reduce file sizes and improve streaming performance
- Store point cloud archives in a dedicated Egnyte folder separate from active project files to avoid unnecessary sync activity
Streamline Civil 3D Add-Ons
Over time, Civil 3D environments can become cluttered with plugins accumulated across various versions. It is important to audit the add-on library and remove any tools that are no longer essential to daily workflows.
Recommendations
To optimize the setup, consider enabling add-ons incrementally and observing their impact on performance. Additionally, starting with a clean Imperial base image and layering only the necessary plugins can help maintain a lean, efficient Civil 3D environment.
Batch Plotting on Civil 3D
Civil 3D’s native batch plotting tool can be time-consuming and may cause application slowdowns—especially when working with large or complex drawing sets.
Recommendations
To streamline the printing process, consider using Vasion Printing for more efficient print management directly from Civil 3D. Alternatively, if using Bluebeam, Civil 3D displays an option to choose Bluebeam as the print module in the Batch Plot workflow. Choose this option especially if there is a need to perform large batch plotting operations.
