Active Directory Authentication

Authentication Types

Egnyte supports three types of authentication:

• Egnyte - authentication with Egnyte credentials.
• SSO - authentication with a Single Sign-On provider like Azure, Okta, AD FS, etc.
• AD - authentication with Active Directory Domain Controller.

Users can have different authentication types. Authentication can be set up in account settings.

This article focuses on the last authentication type - AD.

Prerequisites

Your Domain Controller should be exposed to the Internet. Our recommendation is to limit this exposure to the following:

Ports:

• 636
• 3269 - only if you use a global catalog

IPs for firewall whitelisting:

Location	Default IP Subnet Address
West Coast	162.216.251.0/24 35.236.56.251 34.94.215.52 34.94.100.159
East Coast	162.216.252.0/24 34.85.149.135 34.150.210.15 34.85.245.110
Europe	162.216.250.0/24 35.190.199.51 104.155.27.98 34.78.25.130

Scenarios

Two basic scenarios cover most cases.

• Scenario 1: There is only one BindDN specified, and all users in Active Directory have the same domain in their UPNs.
  Example of users UPNs:
  user1@acme.com
  user2@acme.com
  user3@acme.com


• Scenario 2: There are multiple BindDNs specified, and users in Active Directory have different domains in their UPNs.
  Example of users UPNs:
  ACME.us\User1
  ACME.eu\User2
  ACME.uk\User3

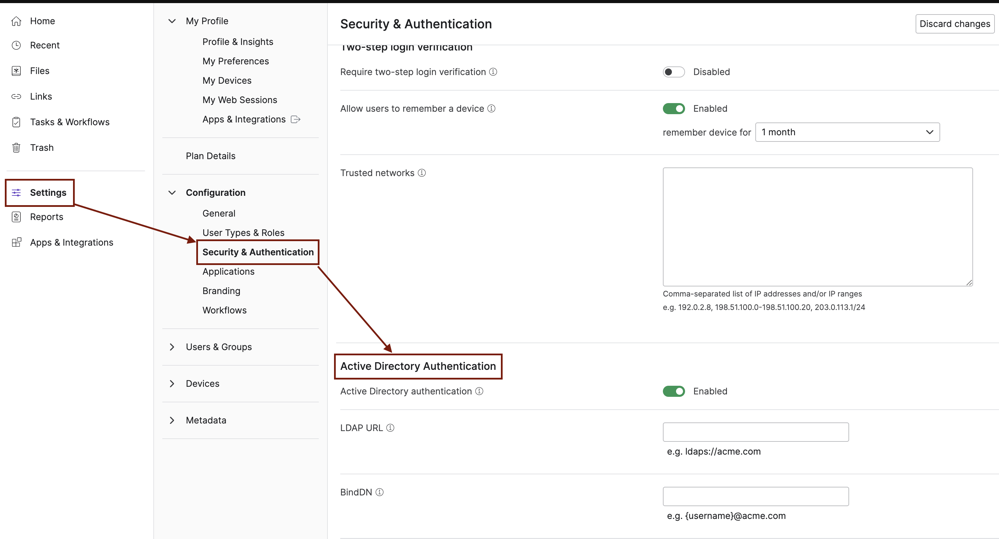

Navigate to Security and Authentication settings and enable LDAP authentication:

Scenario 1:

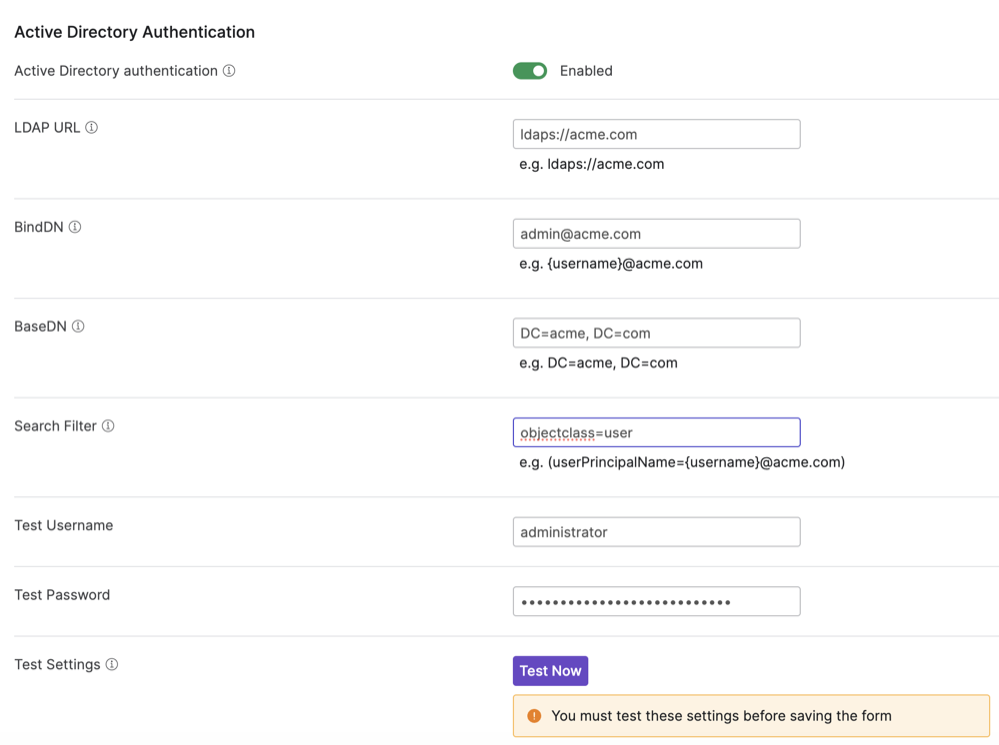

Fill in all fields with your data and credentials, as shown in the examples.

Please remember to test your settings before saving.

Scenario 2:

By default, multiple BindDNs are not supported; however, we can use prefix from pre-Windows 2000 format because it's usually the same for all users in our AD, e.g., ACME\user1.

Example configuration:

Additional Notes

• ADKit does not sync passwords with Egnyte, so they are not stored in our databases.
• During the authentication process, Egnyte servers ask the Domain Controller for authentication via LDAPS protocol.
• Troubleshooting steps:
  • Check your credentials in your Domain Controller.
  • Check if LDAPS is enabled and configured correctly in your AD.
  • Check if firewall settings are correct (if proper ports are open and if Egnyte IPs are added to exceptions).
